PM2.5 Air Quality Sensor Smart Braclet & SmartWatch Air Sensor

Wearable Air Quality Monitor Module

Wearable Air Quality Monitor Module!

- An unique CurieJet® P760 Sensor Application

The World Health Organization believes that 29% of lung cancer, 24% of stroke, 25% of heart disease and 43% of lung disease deaths are due to air pollution. 92% of the world’s population cannot breathe safe air, and 7 million people die directly or indirectly from air pollution each year.

Long-term inhalation of polluted air will further damage our metabolism, resulting in obesity, diabetes and high blood pressure. Pregnant women breathing polluted air may cause premature birth or miscarriage, or give birth to children with hyperactivity and autism. Air pollution also often causes asthma, allergic rhinitis, bronchitis, pneumonia, and may even lead to skin allergies, arteriosclerosis, myocardial infarction, stroke, dementia, as well as cancers such as lung cancer, breast cancer, and liver cancer. People who care about the health of themselves and their relatives and friends should know the air pollution exposure data of their environment at anytime and anywhere. Data tells the truth. The essence of air pollution detection is preventive medicine.

The air quality monitor product trend has evolved from fixed, desktop, to portable types; Some air pollution meters, detector, tracker or gas analyzer support PM2.5 or VOCs measurements. Although the portable air quality monitor can be mobile, but not yet be wearable due to PM2.5 sensor size and weight constraint.

Why WEARABLE?

It will be much more easy to carry and in time to use anywhere if air monitor becomes wearable type. Wearable air quality monitor may be designed with smart necklace, brooch, badge, leather belt, smart clothing, smart mask, smart watch, smart bracelet, fitness tracker, GPS tracker, hat, motorcycle helmet, construction site helmetor wearable air purifier. Even, it may be integrated with personal biomedical or health care products such as Chronic Obstructive Pulmonary Disease (COPD) or asthma therapy devices.

During intense exercise, our daily breathing volume increases by 10 to 20 times from the usual 10,000 liters. If you exercise in a high-concentration air pollution and low-temperature environment, it may be fatal! Not only for indoor air quality monitoring, but also for outdoor applications. Wearable air quality monitor supports Bluetooth connection for mobile phone APP and records air pollution data continuously for personal healthcare.

Industrial Designs

CurieJet® P760 Particle & Gas Sensor, with size only 29x 29x 7.2 mm, is the world’s smallest all-in-one environmental sensor. With small and slim size, also very low power consumption, developers are easy to design the whole wearable air quality monitor. You may refer below design example: Click Here

Optional Functions:

Time Display
Temperature/Humidity
PM2.5, PM1 and PM10 Particle Sensing
VOC, Ventilation Status, Barometric Air Pressure& Altitude Change
Remote Controls for Air Purifiers, Air Conditioners & HVAC Ventilation System
Other Smart Watch functions
Related G-Sensor, Gyroscope, Vibration Motors, etc.

Core Technology

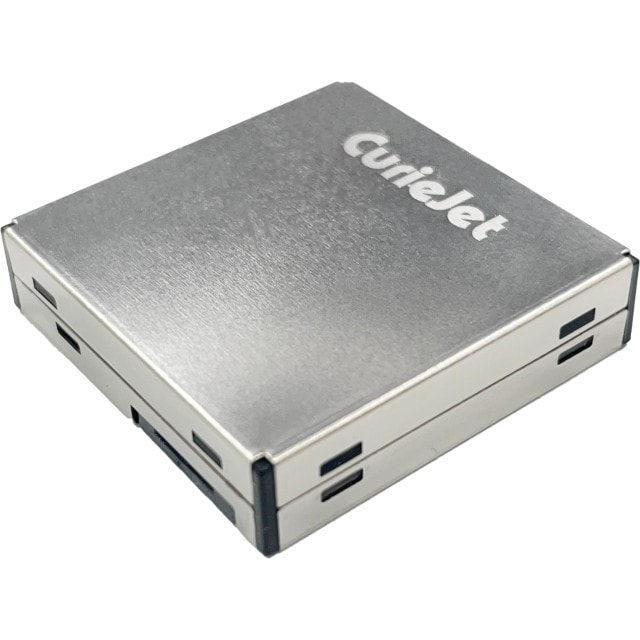

P760 Particle & Gas Sensor, with size only 29x 29x 7.2 mm, is the world’s smallest all-in-one air sensor with only 1/16 volume compared with others. P760 uses laser light with Mie scattering theory to measure PM2.5, PM10 and even PM1.0. P760 also integrates BME680 Environmental Sensor that can detect VOC gas, show the ventilation status, sense barometric pressure for weather glass or altitude difference. It also detects ethanol and may be developed as alcohol breath tester, or drunk driving prevention alarm system.

We can supply the unique Particle, VOC and Barometer Sensor for you to customize your smart watch with air monitor function. Please refer below for more information on CurieJet® P760: P760 Product Information

DataSheets: Download

APP

APP is available under licensing to support various functions. APP support Air Quality Status, Histogram, Camera Shot, Air Map, Personal Trail, Knowledge Info, Account, etc. and create BIG DATA via AI in CLOUD to make the end products become IOT and AIOT devices.

APP (on Android): Download
APP (on iOS): Download

About us

CurieJet® is the marketing brand of Microjet Technology’s Piezoelectric Micro Fluidics products. We have applied for more than 1,600 patents worldwide on micropumps & related products. Most are invention patents. Curiejet Website
